  Driving > Optidrive E2 1Phase
The Optidrive E2 Single Phase is the world’s first fully digital, fully packaged variable speed drive for controlling low power single phase motors.

Designed to be cost effective and easy to use, the Optidrive E2 Single Phase is for use with PSC (Permanent Split Capacitor) or Shaded-Pole Single-Phase induction motors.

Optidrive E2 Single Phase uses a revolutionary motor control strategy to achieve reliable intelligent starting of single phase motors.

Optidrive E2 Single Phase has only 14 standard parameters to adjust in its basic form. The Optidrive's legendary ease of use ensures quick and easy drive commissioning. For the more advanced user the extended parameter set gives access to powerful additional functionality.
  Key Benefits
115V & 220V ratings
Single phase input/ single phase output
Small mechanical envelope
Rugged industrial operation 50°C ambient rating
Simple mechanical & electrical installation
Simple operation, powerful features & easy to use
Fast setup, factory default settings ok for most
Variable torque or constant torque
Unique programmable boost feature to achieve
Motor current and rpm indication
Debugging using troubleshooting & P-00
150% overload for 60 secs (175% for 2 secs)
Keypad control
Integral RFI filter option
Integral brake chopper
Modbus RTU serial communications
  Electrical Data
200-240V - 1 PhaseMotor Power (kW)Output Current (A) Frame Size

  Key Physical Features
Easy access key slots for simple installation
Easy access contactor style power terminals for intuitive easy wiring
Help card for basic parameter description and terminal layout
Easy to use keypad with bright LED display
5mm pitch, rising clamp control terminals
  Key Control Features
Programmable I/O for flexible control
Analogue input 12 bit resolution for accuracy
Positive logic digital inputs (active high)
Galvanically isolated and short circuit proof
  Key Programming Features
Silent motor running with 32kHz ultra-quiet switching
4 preset speeds
Mains dip ride through
Skip frequencies
Last 4 trips stored
Parameter lock
Hours run meter
Speed scaling factor for master - slave arrangements
Ten selectable V/f curves
  Key Specifications
Supply frequency 48 to 62 Hz
Max. permissible 3-phase supply imbalance 3%
Max. ambient temperature 50°C
Max. altitude 2000 m
Derate above 1000 m, 1% / 100 m
I x t protection above 100% output current
150% overload for 60 sec
175% overload allowable for 2 sec
Storage temperature -40 to +60°C

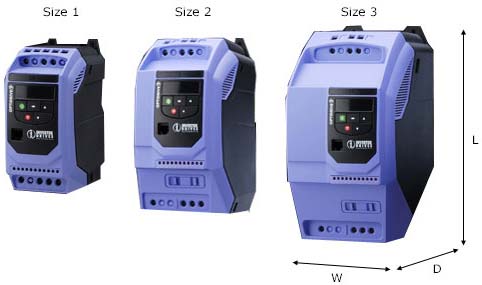

Size Length (mm) Width (mm) Depth (mm) Weight (kg) Fixings
1 155 80 130 1.1 2 * M4
2 260 100 175 2.6 2 * M4
