  Driving > Optidrive P2

The all new Optidrive P2 provides world leading control for both standard induction motors and permanent magnet motors.

Open loop vector control of standard induction motors provides up to 200% torque from zero speed

Open and closed loop control of the latest generation of high efficiency PM motors

Closed loop encoder feedback capability for standard induction motors

Extensive I/O and communications interface capabilities ensure the drive can be integrated quickly and efficiently into a wide variety of control systems.

A simple parameter structure and carefully selected factory settings ensure fast and easy commissioning.


  Key Benefits

Pluggable control terminals
Internal RFI filter for compliance with the latest EMC standards
Just 14 basic parameters allows fast commissioning of powerful features
Up to 32kHz Output Switching Frequency for ultra quiet motor operation


  Electrical Data

200-240V - 1 Phase Motor Power (kW) Output Current (A) Frame Size
ODP-2-22075-1KF4X-SN 0.75 4.3 2
ODP-2-22075-1KF4Y-SN 0.75 4.3 2
ODP-2-22075-1KF42-SN0.754.32
ODP-2-22150-1KF42-SN1.572
ODP-2-22150-1KF4X-SN1.572
ODP-2-22150-1KF4Y-SN1.572
ODP-2-22220-1KF4X-SN2.210.52
ODP-2-22220-1KF4Y-SN2.210.52
ODP-2-22220-1KF42-SN2.210.52

200-240V - 3 Phaseer (kW)Output Current (A) Frame Size Details
ODP-2-22075-3KF42-SN 0.754.3 2
ODP-2-22075-3KF4X-SN0.75 4.32
ODP-2-22075-3KF4Y-SN 0.754.3 2
ODP-2-22150-3KF4X-SN1.5 72
ODP-2-22150-3KF4Y-SN 1.57 2
ODP-2-22150-3KF42-SN1.5 72
ODP-2-22220-3KF42-SN 2.210.5 2
ODP-2-22220-3KF4X-SN2.2 10.52
ODP-2-22220-3KF4Y-SN 2.210.5 2
ODP-2-32040-3KF4X-SN4 183
ODP-2-32040-3KF4Y-SN 418 3
ODP-2-32040-3KF42-SN4 183
ODP-2-32055-3KF42-SN 5.524 3
ODP-2-42055-3KF4N-SN5.5 244
ODP-2-42075-3KF4N-SN 7.530 4
ODP-2-42110-3KF4N-SN11 464
ODP-2-52150-3KF4N-SN 1561 5
ODP-2-52185-3KF4N-SN18.5 725
ODP-2-62022-3KF4N-SN 2290 6
ODP-2-62030-3KF4N-SN30 1106
ODP-2-62037-3KF4N-SN 37150 6
ODP-2-62045-3KF4N-SN45 1806
ODP-2-72055-3KF4N-SN 55202 7

380-480V - 3 Phase 0.75 2.2 2
ODP-2-24075-3KF4X-SN 0.75 2.2 2
ODP-2-24075-3KF4Y-SN 0.75 2.2 2
ODP-2-24150-3KF4X-SN 1.5 4.1 2
ODP-2-24150-3KF4Y-SN1.54.12
ODP-2-24150-3KF42-SN1.54.12
ODP-2-24220-3KF42-SN2.25.82
ODP-2-24220-3KF4X-SN2.25.82
ODP-2-24220-3KF4Y-SN2.25.82
ODP-2-24400-3KF4X-SN49.52
ODP-2-24400-3KF4Y-SN49.52
ODP-2-24400-3KF42-SN49.52
ODP-2-34055-3KF42-SN5.5143
ODP-2-34055-3KF4X-SN5.5143
ODP-2-34055-3KF4Y-SN5.5143
ODP-2-34075-3KF4X-SN7.5183
ODP-2-34075-3KF4Y-SN7.5183
ODP-2-34075-3KF42-SN7.5183
ODP-2-34110-3KF42-SN11243
ODP-2-44110-3KF4N-SN11244
ODP-2-44150-3KF4N-SN15304
ODP-2-44185-3KF4N-SN18.5394
ODP-2-44220-3KF4N-SN22464
ODP-2-54300-3KF4N-SN30615
ODP-2-54370-3KF4N-SN37705
ODP-2-64045-3KF4N-SN45906
ODP-2-64055-3KF4N-SN551106
ODP-2-64075-3KF4N-SN751506
ODP-2-64090-3KF4N-SN901806
ODP-2-74110-3KF4N-SN1102027
ODP-2-74132-3KF4N-SN1322407
ODP-2-74160-3KF4N-SN1603027
ODP-2-84200-3KF44-SN2003708
ODP-2-84250-3KF44-SN2504508


  Drive Commissioning and Parameter Backup

Real Time Parameter Editing
Parameter Upload, Download and Compare Functions
Function Block Commissioning Diagrams
Multi Channel Scope and Datalogger functions
Simple PLC function programming


  Rapid Commissioning

Allows rapid copying of parameters between multiple drives.
Provides Bluetooth wireless interface to a PC running OptiTools Studio.
Backup and restore of drive parameters.

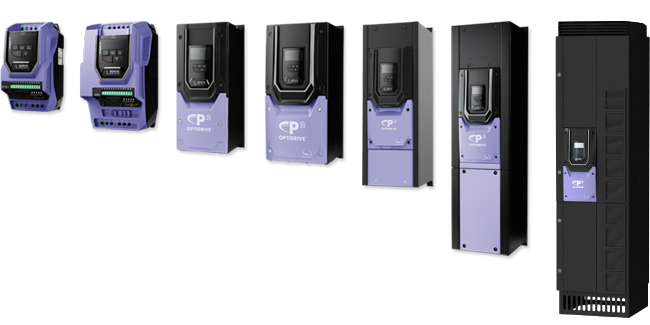

  Dimensions

Size Length (mm) Width (mm) Depth (mm) Weight (kg) Fixings
2 221 112 185 1.8 4 * M4
3 261 131 205 3.5 4 * M4
4 440 173 230 11.5 4 * M8
5 540 235 270 22.5 4 * M8
6 865 330 340 50 4 * M10
7 1280 330 370 80 4 * M10
8 2000 516 500 270 4 * M10
