  Driving > Optidrive E2 IP55

The ultimate drive for harsh environments. The IP55 / NEMA 12 enclosure drive has been designed to expand the success of the Optidrive E2 and Optidrive Plus 3GV product range.

Available in switched or non-switched enclosures


  Key Benefits

Wash down duty IP55/NEMA 12
Wall mountable
Resists low-pressure water, dust, dirt and chemicals
Rugged industrial 40°C ambient rating for hot and
Conduit cable entry
Switched or non switched
Infra red capability
Keypad Control
Integral RFI filter option
Small mechanical size


  Switched Units

Local Power Isolator
Local Potentiometer for speed control
Drive Fwd/Rev sitch


  Ratings Explained

IP55
The IP55 rating means this unit has a protection level of five against solid-body ingress, and a protection level of five against the ingress of water. Five is the second-highest protection level against solid bodies, meaning the unit is protected against dust ingress to the point of disallowing harmful deposits. Protection against water ingress goes up to level eight, and a five means this unit will be protected against the effects of low-pressure jets of water from any direction.

NEMA 12
Type 12 enclosures are intended for industrial indoor use primarily to provide a degree of protection against dust, falling dirt, and dripping noncorrosive liquids.

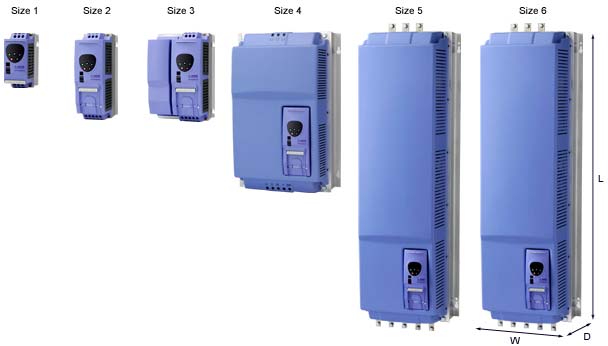

  Dimensions

Size Length (mm) Width (mm) Depth (mm) Weight (kg) Fixings
1 155 80 130 1.1 2 * M4
2 260 100 175 2.6 2 * M4
3 260 171 175 5.3 4 * M4
4 520 340 220 28 4 * M8
5 1045 340 220 67 4 * M8
6 1100 340 330 55 4 * M8
