Driving > Optidrive E2 IP66
Expanding on the success of the Optidrive E2, IP20 and IP55/NEMX 12 products, the Optidrive E2 IP66/NEMA 4X is ideal for food and beverage as well as pharmaceutical applications. The IP66 / NEMA 4X enclosure is a cost-effective, washdown duty Optidrive for low power situations. Ready for high-pressure washdown, the IP66 / NEMA 4X can mount directly on your processing equipment.
Available for all Optidrive E2 variants up to 7.5kW/10HP in 3 physical frames sizes.
Key Benefits
High Pressure Washdown duty IP66/NEMA4X for indoor use
Specially Coated heatsinks to protect against corrosion
Dust tight seals to prevent water, oil & dust entering the enclosure
No external Fans to replace
Switched or non-switched versions
Easy setup with default parameters suitable for most applications
Rapid programming with Optistick & Optiwand PDA
Rugged industrial 40°C ambient rating for tough and hot applications Wall mountable
Conduit cable entry
Convenient keypad control
Optional built-in RFI/EMC Filter
Integral Brake Chopper on Sizes 2 & 3
MODBUS RTU serial communication as standard
PI control for feedback applications
Electrical Data
200-240V - 1 Phase
Motor Power (kW)
Output Current (A)
Frame Size
ODE-2-12037-1K01X
0.37
2.3
1
ODE-2-12075-1K01X
0.75
4.3
1
ODE-2-12150-1K01X
1.5
7
1
ODE-2-22150-1K04X
1.5
7
2
ODE-2-22220-1K04X
2.2
10.5
2
200-240V - 3 Phase
Motor Power (kW)
Output Current (A)
Frame Size
ODE-2-12037-3K01X
0.37
2.3
1
ODE-2-12075-3K01X
0.75
4.3
1
ODE-2-12150-3K01X
1.5
7
1
ODE-2-22150-3K04X
1.5
7
2
ODE-2-22220-3K04X
2.2
10.5
2
ODE-2-32040-3K04X
4.0
18
3
380-480V - 3 Phase
Motor Power (kW)
Output Current (A)
Frame Size
ODE-2-14075-3K01X
0.75
2.2
1
ODE-2-14150-3K01X
1.5
4.1
1
ODE-2-24150-3K04X
1.5
4.1
2
ODE-2-24220-3K04X
2.2
5.8
2
ODE-2-24400-3K04X
4
9.5
2
ODE-2-34055-3K04X
5.5
14
3
ODE-2-34075-3K04X
7.5
18
3
Switched Units
Local potentiometer for speed control
Drive FWD/OFF/REV switch - Programmable for Hand / Auto (Local / Remote) applications
Local Power Isolator - Provides the ability to isolate the motor for maintenance and servicing.
Ratings Explained
IP55
An IP number contains two numbers (i.e. IP65) in most instances which relate to the level of protection provided by an enclosure or housing.
The first number relates to protection from solids as follows:
6 Dust tight.
The second number relates to protection from liquids as follows:
6 Protection against powerful jets of water
NEMA 4X
Enclosures constructed for indoor use to provide a degree of protection to personnel against incidental contact with the enclosed equipment; to provide a degree of protection against falling dirt, windblown dust, splashing water, and hose-directed water. Enclosure is protected against corrosion.

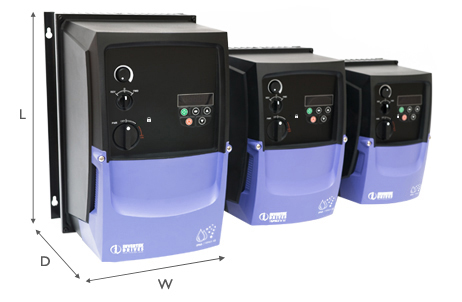

Dimensions
Size
Length (mm)
Width (mm)
Depth (mm)
Weight (kg)
Fixings
1
232
161
175
2.8
4 * M4
2
257
188
187
4.6
4 * M4
3
310
210.5
243
7.4
4 * M4
